DAP Brands’ coaxial output

Cover image

Written by

EW

EWU

Published on

3/23/2025

Assuming into the Dethonray Clarinet. The Clarinet accepts 3.5mm.

iBasso, Onix, Luxury & Precision

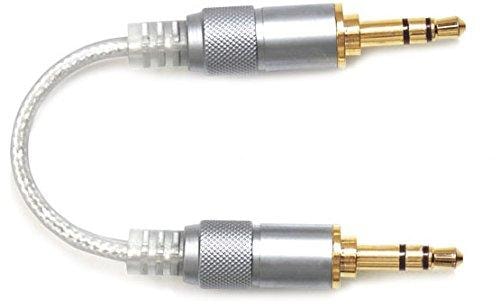

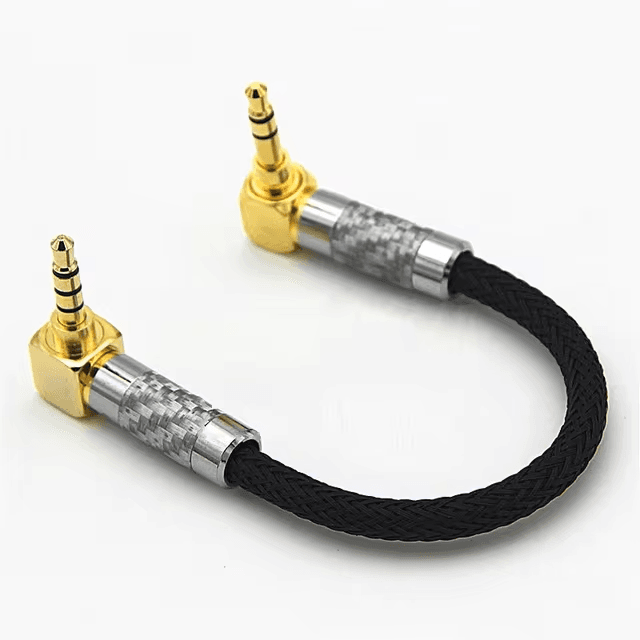

3.5mm to 3.5mm. Any 3.5mm Interconnect will work.

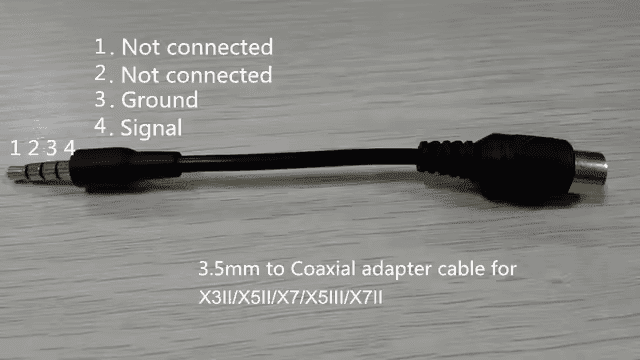

I received from iBasso support for the layout of the pins.


Hiby and Cayin.

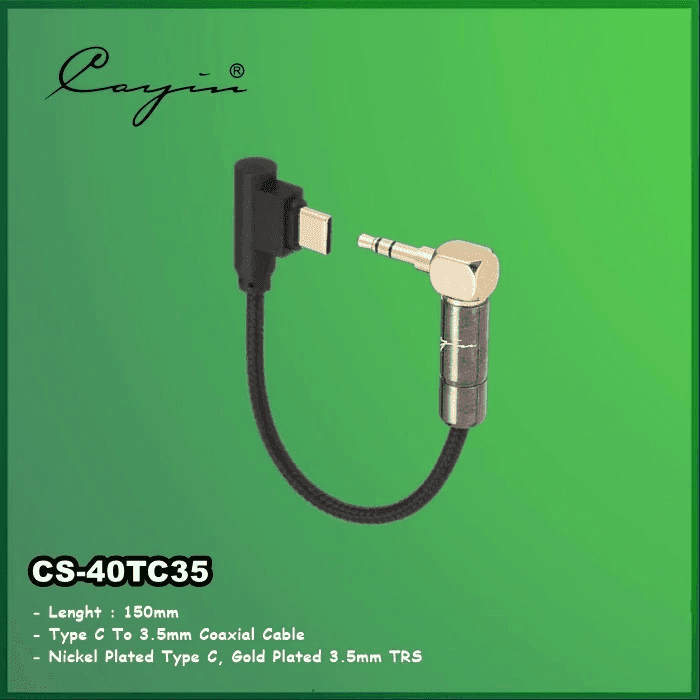

The coaxial output is from the USB port.


Fiio and Shanling

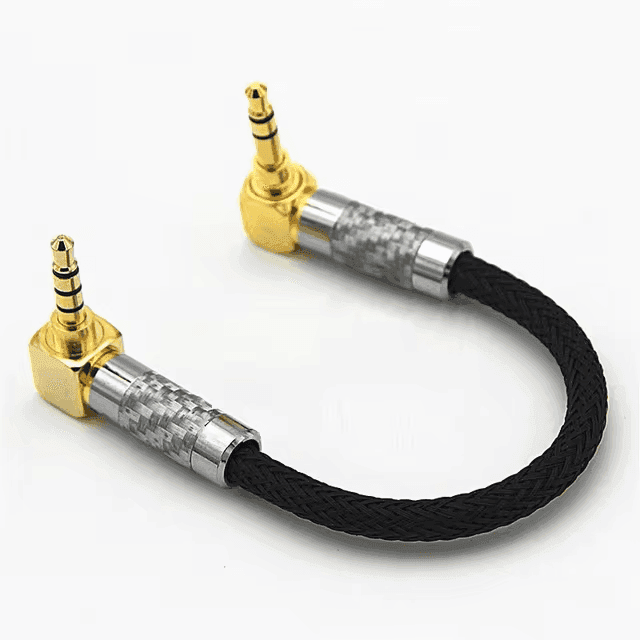

3.5mm TTRS to 3.5mm


The Fiio player end. I found this, but I cannot confirm it. I do have a Fiio player but never used the coaxial.


Astell & Kern

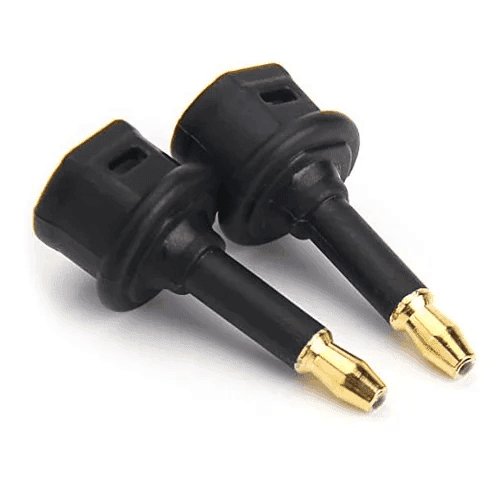

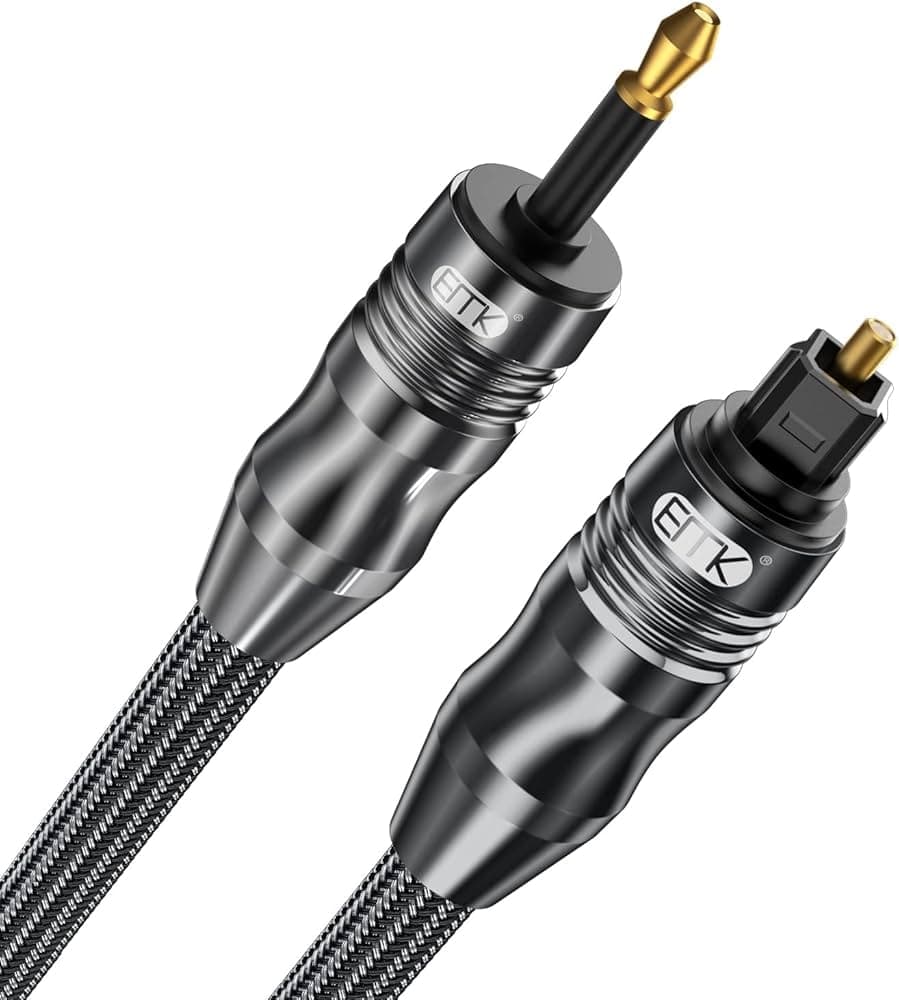

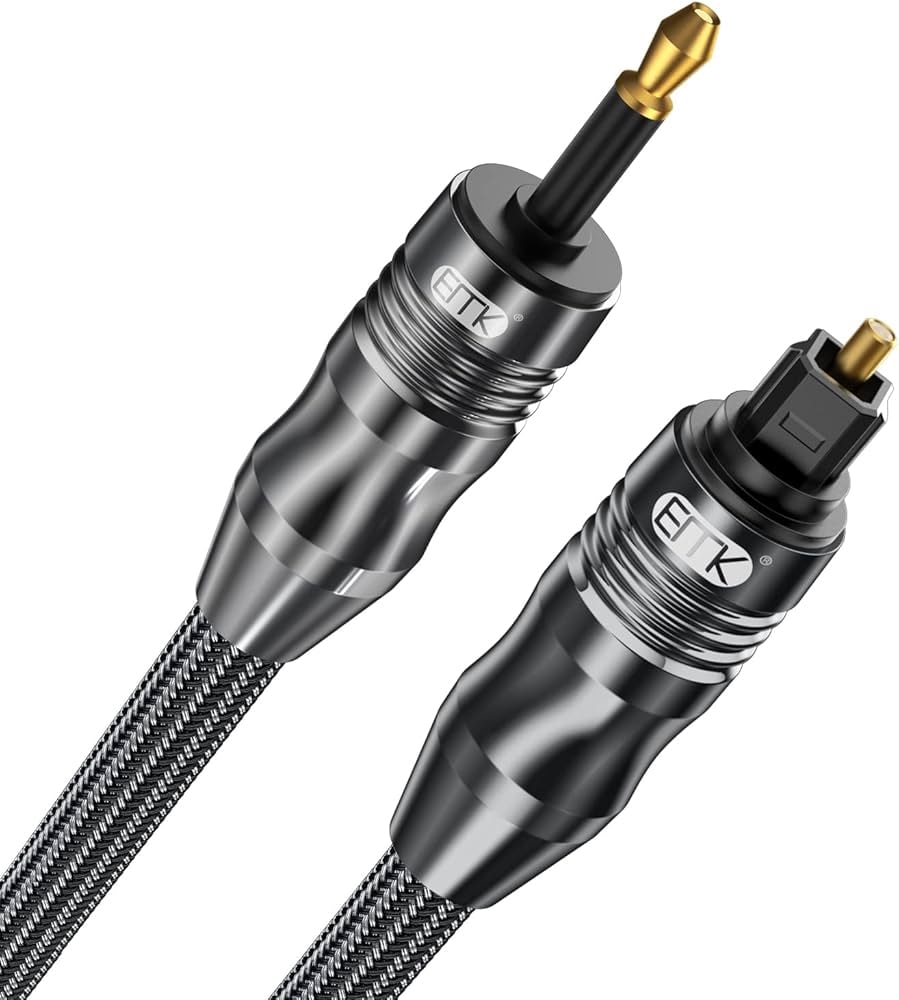

You're out of luck. However, the Kann Alpha does support optical out via the 3,5mm. Most toslink cables are regular to mini. You might need an adapter to get both sides mini. I cannot confirm it works, or which of the newer models support it. I don't have AK players.
